Product details
ALF-NANO
Compact spark detection & extinguishing system
Local protection for production lines with a risk of sparks, embers or hot spots. EWS ALF-NANO detects and extinguishes sparks at localized risk points, with up to two protection areas, pre-configured system logic and safety event logging
Local protection for combustible-material handling
Spot the spark. Protect the line.
Detects and extinguishes sparks at localized fire and explosion risk points in production lines.
Designed to reduce fire risk, protect machinery and limit production line downtime with a cost-conscious investment.
Built for straightforward local protection
Part of the Electronic Wood Systems ALF family, ALF-NANO follows ALF-9000 design principles and is optimized for small applications. Its focus is fast spark detection, reliable extinguishing and simple deployment at the plant.
Compact system
Designed for small applications and local protection of individual machines or limited areas.
Plug-and-play integration
Direct connection of detectors, extinguishing valves and sensors; no complex manual configuration required.
Fast commissioning
Pre-configured operation reduces installation effort and startup time.
Internal supervision
Automatic monitoring of detectors, valves and wiring supports system readiness.
Extinguishing monitoring
Monitors water flow, leakage, water supply status and connected external safety devices.
Event logging
Stores safety-related events for later inspection and maintenance, supporting operational traceability.
Suitable installation points

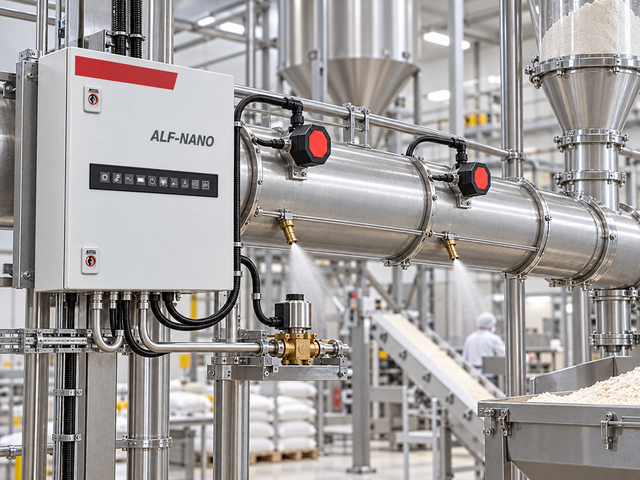

- Individual machines, conveyors, small work areas, transfer points and material conveying lines
- Early spark detection and extinguishing to help prevent fire spread, dust fires and production line stoppages.
- Retrofit projects and space-constrained locations
- Add safety protection without major modifications to the existing line structure.
EWS ALF Series
See the system in action

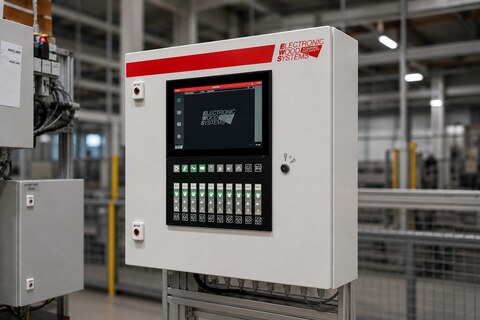

This EWS video demonstrates ALF-series spark detection and extinguishing technology in a production environment.
From the manufacturer brochure
A closer look at ALF-NANO

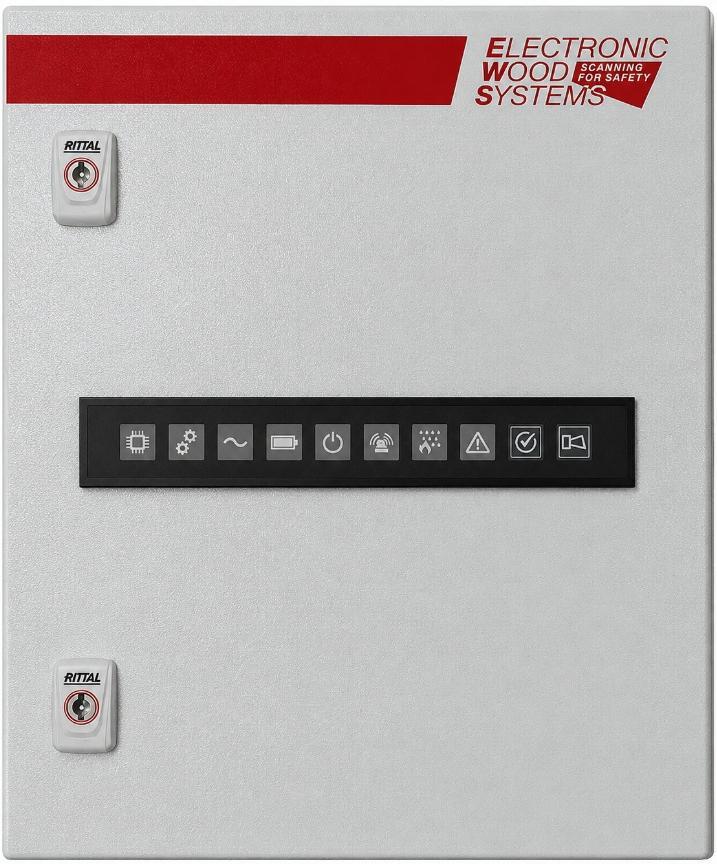

Illustrative components from the EWS ALF-NANO sales brochure: detector, extinguishing units and system accessories.
Identification
- Product name
- ALF-NANO
- Manufacturer part number
- ALF-NANO
- Brand
- Electronic Wood Systems
- Application
- Measurement and detection
- Category
- Spark, flame, and fire protection
Application
For wood, wood-based panels, biomass, pellet, paper, agricultural and recycling production lines, and other industries handling combustible materials.
Function
Detects and extinguishes sparks at localized fire and explosion risk points in production lines.
Value for use
Designed to reduce fire risk, protect machinery and limit production line downtime with a cost-conscious investment.
System configuration
- System
- Compact spark detection and extinguishing
- Protection areas
- Up to 2
- Detectors
- 2 per protection area
- Extinguishing units
- 2 per protection area
- Connections
- Direct connection of detectors, extinguishing valves and sensors
- Configuration
- Pre-configured system logic; no complex manual configuration required
- Additional I/O
- Inputs and outputs for monitoring and indication
- Event logging
- Safety-related events stored for inspection, maintenance and operational traceability
Based on the updated EWS ALF-NANO sales brochure. Read the sales brochure (PDF).
Product information
- Article number
- ALF-NANO
- Manufacturer
- Electronic Wood Systems GmbH
- Product designation
- Compact spark detection and extinguishing system
- Application and material
- For wood, wood-based panels, biomass, pellet, paper, agricultural and recycling production lines, and other industries handling combustible materials.
- Product description
- Part of the EWS ALF family and developed according to ALF-9000 design principles for small applications. Up to two protection areas, each with two detectors and two extinguishing units, plus additional I/O for monitoring and indication. Direct connection of detectors, extinguishing valves and sensors; no complex manual configuration required.
